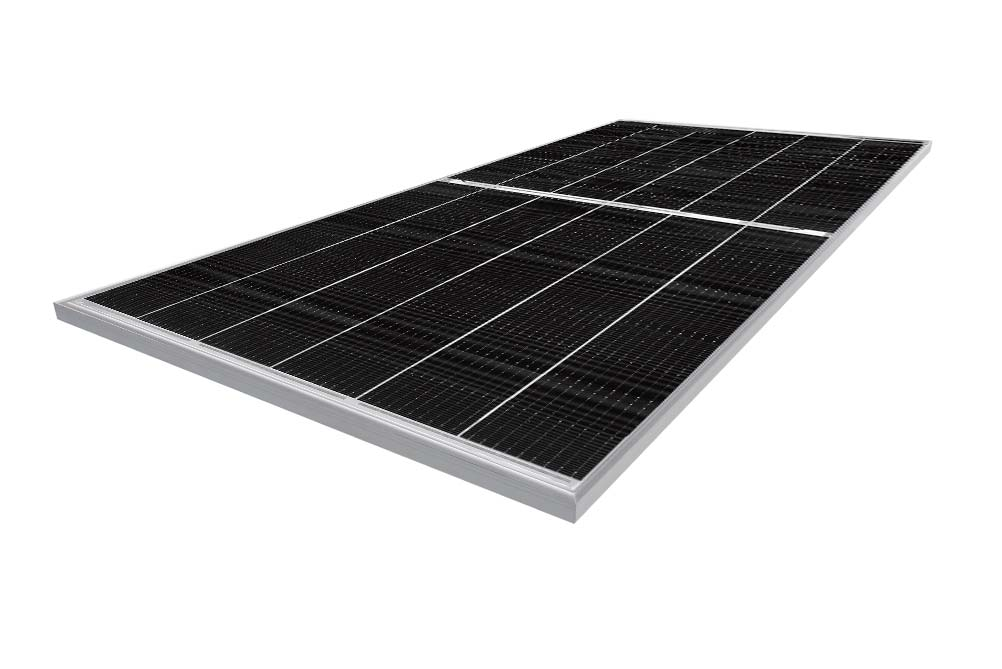

Grade B 120cells 9BB Mono Facial 355w-375w
Mechanical Characteristics
| Cell Type | N type Mono-crystalline |
| No. of cells | 120(60*2) |
| Dimensions | 1692x1029x30mm(66.61x40.51x1.18inch) |
| Weight | 19.0kg(41.89lbs) |
| Front Glass | 3.2mm ,Anti-Reflection Coating, High Transmission,Low Iron,Tempered Glass |
| Frame | Anodized Aluminium Alloy |
| Juntion Box | IP68 Rated |
| Output Cables | Tuv 1x4.0mm (+):290mm,(-) :145mm or Customized Length |
specification
| Module type | JKM355N-6TL3 JKM355N-6TL3-V | JKM360N-6TL3 JKM360N-6TL3-V | JKM365N-6TL3 JKM365N-6TL3-V | JKM370N-6TL3 JKM370N-6TL3-V | JKM375N-6TL3 JKM375N-6TL3-V |
| | STC NOCT | STC NOCT | STC NOCT | STC NOCT | STC NOCT |
| Maximum Power(Pmax) | 355Wp 265Wp | 360Wp 268Wp | 365Wp 272Wp | 370Wp 276Wp | 375Wp 280Wp |
| Maximum Power Voltage(Vmp) | 34.04V 31.40V | 34.19V 31.58V | 34.34V 31.72V | 34.49V 31.88V | 34.63V 32.03V |
| Maximum Power Current (Imp) | 10.43A 8.43A | 10.53A 8.50A | 10.63A 8.58A | 10.73A 8.65A | 10.83A 8.73A |
| Open-circuit Voltage(Voc) | 41.01V 38.71V | 41.16V 38.85V | 41.31V 38.99V | 41.46V 39.13V | 41.60V 39.26V |
| Short-circuit Current(Isc) | 11.13A 8.99A | 11.23A 9.07A | 11.33A 9.15A | 11.43A 9.23A | 11.53A 9.31A |
| Module Efficiency STC (%) | 20.39% | 20.68% | 20.96% | 21.25% | 21.54% |
| Operating Temperature(ºc) | -40ºC~+85ºC |
| Maximum System Voltage | 1000/1500VDC(IEC) |
| Maximum Series Fuse Rating | 20A |
| Power Tolerance | 0~+3% |
| Temperature Coefficients of Prmax | -0.34%/ºc |
| Temperature Coefficients of Voc | -0.28%/ºc |
| Temperature Coefficients of Isc | 0.048%/ºc |
| Nominal Operating Cell Temperature(Noct) | 45+ºc |
FAQ
Q1: What is your MOQ?
A: We have no MOQ, 1pc sample order is also ok for us,but best Cost performance is by big quantity order.
Q2: Do you have any experience with big bidding projects?
A: Yes, we have rich experience on the big bidding projects, and have helped our customers win many such bidding projects. Our sale engineer are very familiar with the bidding procedure and can provide detailed information as required in time.
Q3: Do you accept OEM?
A: yes, we can do the OEM for you, and we are the OEM supplier of many famous brands from Europe, USA, Asia,Middle East and Africa etc.
Q4: What payment terms do you accept?
A: We accept TT, LC,Cash, and Western Union etc.
Q5: What about the production time?
A: Samples can be delivery at once
500sets above normal need 10 to 15 days, if no goods in storage.
2000sets above normal need 15 to 20 days, if no goods in storage.
Q6: What else materials should we prepare before installation after buying your solar panels?
A: We can provide all system components and only small civil work is needed
Q7: What is your Warranty Policy?
A: We offer 20 years warranty for the entire system and can be replaced with new ones for free if quality Issues.
OUR Services :
1. Rich experience in manufacturing and exporting electric equipment.
2. High quality and competitive price.
3. Strict quality control and excellent after-sales service.
4. Manufacturing according to customers requirements is available.
Product Tags:
|
|
IP68 Rated Mono Facial Jinko Solar Panels 120cells 9BB 355w 375w Grade B Images
|
